Ruckus T750SE

The RUCKUS T750SE is a high-end dual-band outdoor Wi-Fi 6 AP with external antenna connectors that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz).

The T750SE provides advanced 802.11ax features including OFDMA and MU-MIMO, and supports up to 1,024 client connections with increased capacity, improved coverage and performance in ultra-high density environments.

The T750SE includes a 2.5 GbE Ethernet PoE+ port for high speed Ethernet backhaul, along with an SFP fiber port for fiber backhaul. Additionally, it includes built-in GPS, USB port, gigabit PoE out port, and IP-67 rated weather proofing.

This section describes the physical features of the RUCKUS Unleashed T750SE AP.

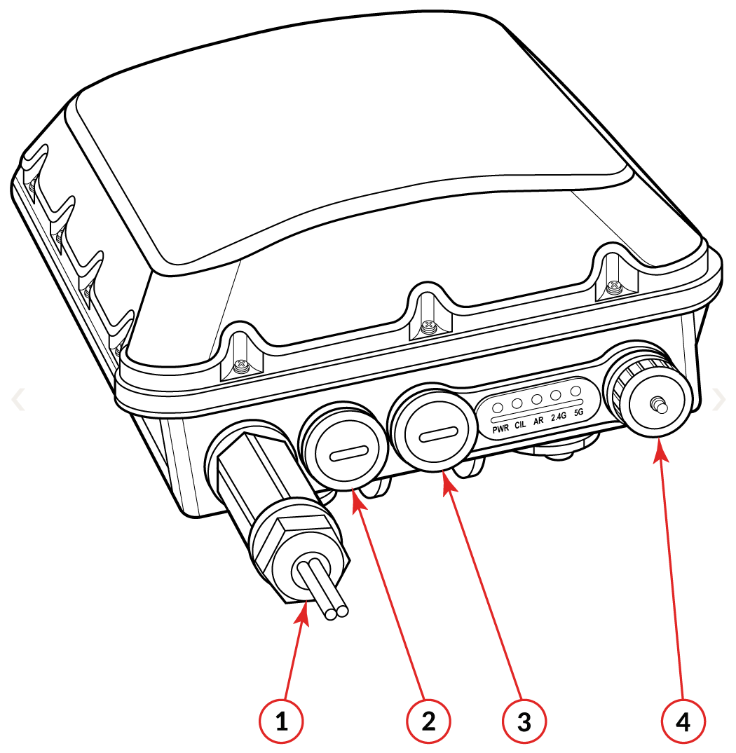

Figure 1. Unleashed T750SE Access Point

1. SFP port
2. PoE IN
3. PoE OUT
4. AC port

Front Panel

The T750SE AP features five LEDs on its front panel.

Table 1. Front Panel LEDs

LED	Status	Description
PWR	Off	No power connected.
PWR	Solid Red	Boot up in process.
PWR	Flashing Green	System started, no routable IP address detected.
PWR	Solid Green	Routable IP address received.
CTL	Off	Unleashed Member AP.
CTL	Flashing Green (slow, every 2 seconds)	Network problem. Cannot contact Unleashed Master.
CTL	Flashing Green (fast, 2x per second)	Receiving configuration or image upgrade.
CTL	Solid Green	Unleashed Master AP.
AIR	N/A	No upstream mesh connection (Root AP).
AIR		Upstream mesh connection established (Mesh AP).
AIR		Upstream mesh connection issue.
2.4G	Off	Radio is down.
2.4G	Amber (solid)	Radio is up, no clients are connected to the 2.4 GHz radio.
2.4G	Solid Green	Radio is up, at least one client is connected to the 2.4 GHz radio.
5G	Off	Radio is down.
5G	Amber (solid)	Radio is up, no clients are connected to the 5 GHz radio.
5G	Solid Green	Radio is up, at least one client is connected to the 5 GHz radio.
5G	Flashing Green	Radio is up, at least one downstream Mesh AP is connected to the 5G radio.
